Trenn-Biber Typ 012L          can be ordered directly under: schefe.saegetechnik@t-online.de

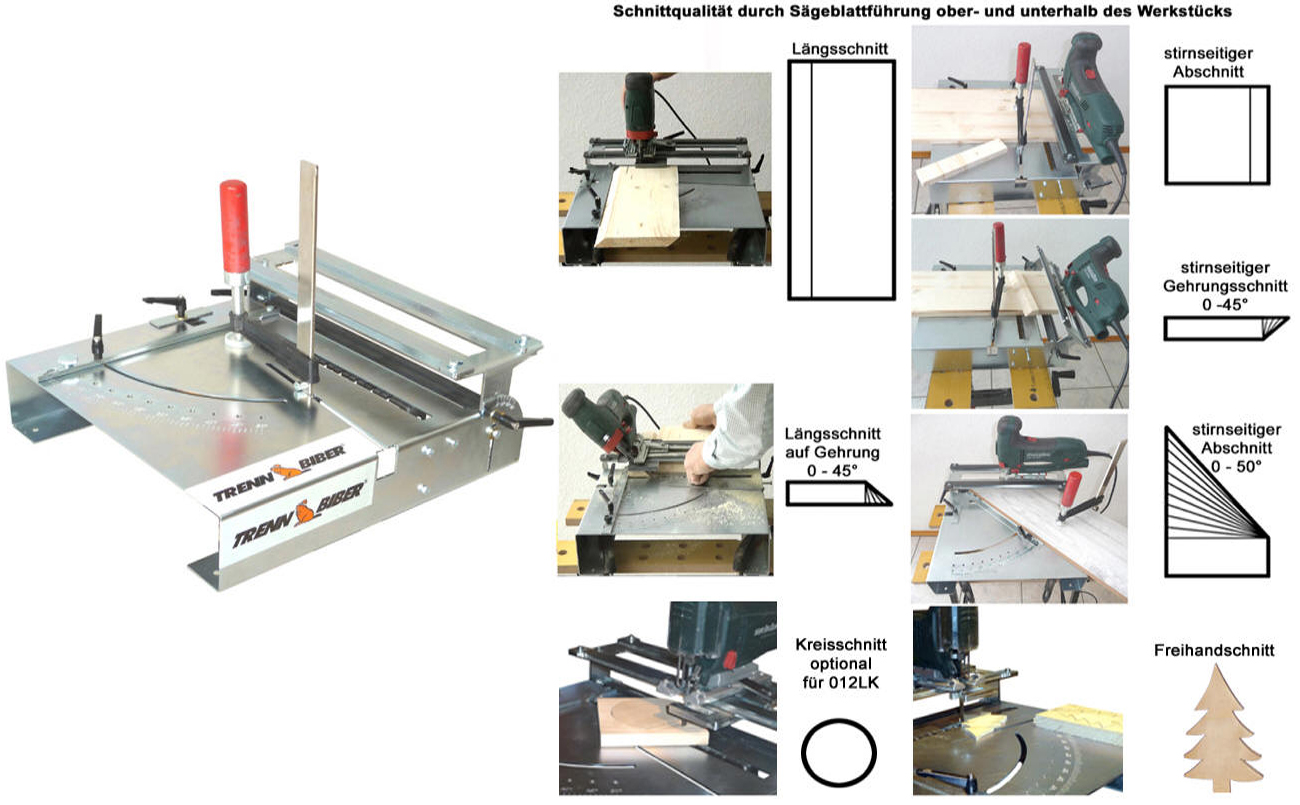

The Unbenannt-1.jpg012L saw appliance - patent pending - for 7 blade-guided cutting options turns your jigsaw into a
multi-functional precision tool

The new saw appliance for clean and angular sawing from Germany offers professional quality
for Bosch, Metabo, Festool, Fein Kress and all other major jigsaw brands.



characteristics:


- Stable, robust and durable metal design

- The multi-functional saw appliance for precise cutting including manually guided and fixed

   use of the jigsaw with 3 horizontal angular adjustments up to 50° and vertical adjustment up to 45° for

   clean and precise mitre cuts

- Machine guide for all jigsaw brands adjustable without clearance

- Cutting of up to 280 x 48 mm with clear millimetre and degree scales

 - Cutting height for 45° front face mitre cutting with a cutting width of up to 35 mm

   and up to 210 mm for 45° front face cutting; cutting height for longitudinal cutting up to 37 mm

- Additional blade guides under the workpiece to ensure precise cutting

- Shifting of the workpiece for manually guided jigsaw cutting is prevented by the clamping bracket

- If the appliance is fixed, shifting of the workpiece is prevented by the retaining mechanism

   for parallel cutting with the manually guided workpiece

- The retaining mechanism and screw fitting for the workpiece reduce any disturbing vibrations to a minimum

- Mitre adjustment for the stand of the jigsaw for guided mitre cutting in longitudinal direction

- High-precision mitre adjustment thanks to fixed 45° fitting for vertical mitre gutting and

   horizontal adjustment in steps of 5° (5 - 50°)

- All available relief-ground and corrugated standard saw blades can be used with cutting direction upward

   and downward
